Crimp Chart Customer

🔗 350 FITTING SERIES · 1 PIECE · NON SKIVE

24 sizes

Hose type	DN06 -04	DN08 -05	DN10 -06	DN12 -08	DN16 -10	DN19 -12	DN22 -16	DN25 -16	DN31 -20	DN38 -24	DN51 -32
mm	6.4	7.9	9.5	12.7	15.9	19.0	22.4	25.4	31.8	38.1	50.8
PH290 PILOT HOSE MARK	Crimp 16.5 16 Mark 22.1		Crimp 20.5 19 Mark 28.5	Crimp 23.3 22 Mark 34.0
PH253 R1AT / 1SN MARK	Crimp 17.4 16 Mark 22.1		Crimp 21.2 19 Mark 28.5	Crimp 24.4 22 Mark 34.0	Crimp 27.6 26 Mark 38.4	Crimp 31.6 30 Mark 38.9		Crimp 39.6 38 Mark 45.2	Crimp 50.4 50 Mark 47.0	Crimp 57.0 57 Mark 38.0	Crimp 70.0 69 Mark 48.0
PH254 R2AT / 2SN MARK	Crimp 18.0 16 Mark 22.1		Crimp 22.0 20 Mark 28.5	Crimp 25.2 24 Mark 34.0	Crimp 28.3 26 Mark 38.4	Crimp 32.9 32 Mark 38.9		Crimp 41.5 40 Mark 45.2	Crimp 52.0 50 Mark 47.0	Crimp 59.0 57 Mark 38.0	Crimp 72.0 71 Mark 48.0
PH255 R1AT / 1SN HIGH TEMPERATURE MSHA MARK	Crimp 17.4 16 Mark 22.1							Crimp 40.3 38 Mark 45.2
PH257 1SC MARK	Crimp 16.60 16 Mark 22.1		Crimp 20.5 19 Mark 28.5	Crimp 23.5 22 Mark 34.0	Crimp 27.0 26 Mark 38.4	Crimp 30.5 30 Mark 38.9		Crimp 39.7 38 Mark 45.2
PH258 2SC MARK	Crimp 17.3 16 Mark 22.1		Crimp 21.3 19 Mark 28.5	Crimp 24.8 24 Mark 34.0	Crimp 27.8 26 Mark 38.4	Crimp 32.3 30 Mark 38.9		Crimp 40.2 38 Mark 45.2	Crimp 48.8 47 Mark 47.0	Crimp 57.3 57 Mark 38.0
PH230 2SC HARD - X MSHA MARK	Crimp 17.3 16 Mark 22.1		Crimp 21.3 19 Mark 28.5	Crimp 24.8 24 Mark 34.0	Crimp 27.8 26 Mark 38.4	Crimp 32.3 30 Mark 38.9		Crimp 40.2 38 Mark 45.2	Crimp 48.8 47 Mark 47.0
PH260 2SC ABRAZON - X MSHA MARK			Crimp 21.3 19 Mark 28.5	Crimp 24.2 22 Mark 34.0	Crimp 27.8 26 Mark 38.4	Crimp 32.3 30 Mark 38.9
PH558 2SC LOW TEMPERATURE MARK	Crimp 17.3 16 Mark 22.1		Crimp 21.3 19 Mark 28.5
PH268 2SC HIGH TEMPERATURE MSHA MARK			Crimp 21.3 19 Mark 28.5
PH297 2SNX - HP MARK	Crimp 17.3 16 Mark 22.1		Crimp 21.0 19 Mark 28.5	Crimp 24.8 24 Mark 34.0	Crimp 27.6 26 Mark 38.4	Crimp 31.2 30 Mark 38.9		Crimp 40.2 38 Mark 45.2

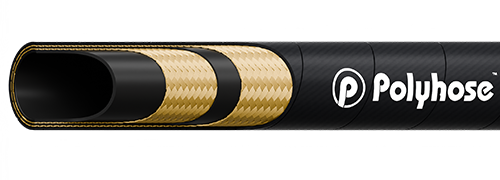

PH597 2SNX - HP HARD-X MSHA MARK	Crimp 17.3 16 Mark 22.1		Crimp 21.0 19 Mark 28.5	Crimp 24.8 24 Mark 34.0
PH207 2SNX - HP ABRAZON - X MSHA MARK	Crimp 17.3 16 Mark 22.1		Crimp 21.3 19 Mark 28.5	Crimp 24.8 24 Mark 34.0		Crimp 32.1 30 Mark 38.9
PH238 2SNX - HP HIGH TEMPERATURE MSHA MARK						Crimp 31.2 30 Mark 38.9
PH293 R17 MARK	Crimp 16.6 16 Mark 22.1		Crimp 20.4 19 Mark 28.5	Crimp 24.1 22 Mark 34.0	Crimp 27.8 26 Mark 38.4	Crimp 32.3 30 Mark 38.9		Crimp 40.4 38 Mark 45.2
PH198 R17 HARD - X MSHA MARK	Crimp 16.6 16 Mark 22.1		Crimp 20.4 19 Mark 28.5	Crimp 24.1 22 Mark 34.0	Crimp 27.8 26 Mark 38.4	Crimp 32.3 30 Mark 38.9		Crimp 40.4 38 Mark 45.2
PH294 R17 ABRAZON - X MSHA MARK	Crimp 16.6 16 Mark 22.1		Crimp 20.2 19 Mark 28.5	Crimp 23.9 22 Mark 34.0	Crimp 27.8 26 Mark 38.4	Crimp 32.3 30 Mark 38.9

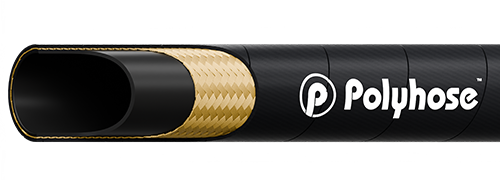

PH593 R17 HIGH TEMPERATURE MSHA MARK			Crimp 20.4 19 Mark 28.5					Crimp 40.4 38 Mark 45.2
PH295 R19 MARK	Crimp 16.6 16 Mark 22.1		Crimp 21.3 19 Mark 28.5	Crimp 24.8 24 Mark 34.0	Crimp 27.6 26 Mark 38.4	Crimp 31.2 30 Mark 38.9		Crimp 40.3 38 Mark 45.2
PH229 R19 HARD - X MSHA MARK	Crimp 16.6 16 Mark 22.1		Crimp 21.3 19 Mark 28.5	Crimp 24.8 24 Mark 34.0	Crimp 27.6 26 Mark 38.4	Crimp 31.2 30 Mark 38.9		Crimp 40.3 38 Mark 45.2
PH434 4000 PSI HIGH TEMPERATURE MSHA MARK						Crimp 31.2 30 Mark 38.9
PH454 4000 PSI ULTRA HIGH TEMPERATURE MARK						Crimp 31.2 30 Mark 38.9
PH492 PILOT HOSE HARD-X MARK			Crimp 20.0 19 Mark 28.5	Crimp 23.3 22 Mark 34.0
PH221 1SC HARD-X MARK	Crimp 16.60 16 Mark 22.1		Crimp 20.5 19 Mark 28.5	Crimp 23.5 22 Mark 34.0	Crimp 27.0 26 Mark 38.4	Crimp 30.5 30 Mark 38.9		Crimp 39.7 38 Mark 45.2	Crimp 48.0 47 Mark 47.0

🔗 355 FITTING SERIES · 1 PIECE · NON SKIVE

6 sizes

Hose type	DN06 -04	DN08 -05	DN10 -06	DN12 -08	DN16 -10	DN19 -12	DN22 -16	DN25 -16	DN31 -20	DN38 -24	DN51 -32
mm	6.4	7.9	9.5	12.7	15.9	19.0	22.4	25.4	31.8	38.1	50.8
PH21E SpiraXcel C5000 MARK			Crimp 25.2 24 Mark 29.3
PH21F SpiraXcel C6000 MARK			Crimp 25.2 24 Mark 29.3
PH177 SAE 100 R12 MARK			Crimp 25.3 24 Mark 29.3	Crimp 28.7 26 Mark 34.6	Crimp 32.6 30 Mark 38.5	Crimp 34.6 34 Mark 38.7		Crimp 43.3 40 Mark 47.7	Crimp 52.2 50 Mark 47.5	Crimp 58.7 57 Mark 59.3
PH187 SAE 100 R12 HARD - X MSHA MARK						Crimp 34.6 34 Mark 38.7		Crimp 43.3 40 Mark 47.7

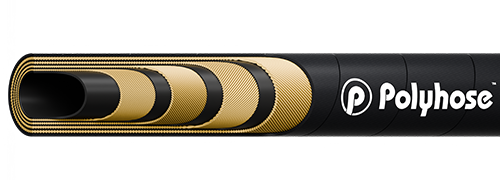

PH285 SAE 100 R12 ABRAZON - X MSHA MARK						Crimp 35.4 34 Mark 38.7

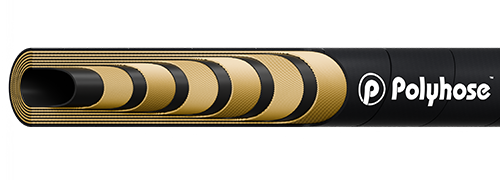

PH277 4SP MARK			Crimp 25.3 24 Mark 29.3	Crimp 28.5 26 Mark 34.6	Crimp 32.5 30 Mark 38.5	Crimp 34.8 34 Mark 38.7		Crimp 43.7 40 Mark 47.7

🔗 360 FITTING SERIES · 1 PIECE · NON SKIVE

8 sizes

Hose type	DN06 -04	DN08 -05	DN10 -06	DN12 -08	DN16 -10	DN19 -12	DN22 -16	DN25 -16	DN31 -20	DN38 -24	DN51 -32
mm	6.4	7.9	9.5	12.7	15.9	19.0	22.4	25.4	31.8	38.1	50.8
PH215 5000 PSI MSHA MARK						Crimp 35.8 34 Mark 41.1		Crimp 42.5 40 Mark 50.3	Crimp 54.5 54 Mark 65.0	Crimp 61.5 57 Mark 62.3
PH21F SpiraXcel C6000 MARK						Crimp 35.5 34 Mark 41.1		Crimp 44.0 40 Mark 50.3
PH216 6000 PSI MSHA MARK						Crimp 35.8 34 Mark 41.1		Crimp 42.5 40 Mark 50.3	Crimp 58.1 57 Mark 65.0		Crimp 61.5 57 Mark 62.3
PH21E SpiraXcel C5000 MARK						Crimp 35.5 34 Mark 41.1		Crimp 44.0 40 Mark 50.3
PH177 SAE 100 R12 MARK									Crimp 56.6 54 Mark 65.0

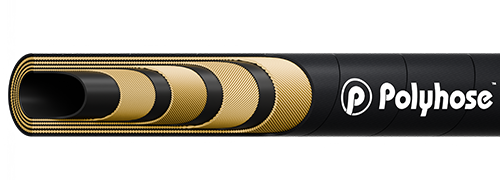

PH178 R13 MARK						Crimp 35.8 34 Mark 41.1		Crimp 42.5 40 Mark 50.3	Crimp 58.1 57 Mark 65.0	Crimp 61.5 57 Mark 62.3
PH279 R15 MARK						Crimp 35.8 34 Mark 41.1		Crimp 42.5 40 Mark 50.3	Crimp 58.1 57 Mark 65.0	Crimp 61.5 57 Mark 62.3
PH278 4SH MARK						Crimp 35.8 34 Mark 41.1		Crimp 42.5 40 Mark 50.3	Crimp 54.5 54 Mark 65.0	Crimp 59.3 57 Mark 62.3

🔗 110 FITTING SERIES · 2 PIECE · 21010150 FERRULE SERIES · NON SKIVE

16 sizes

Hose type	DN06 -04	DN08 -05	DN10 -06	DN12 -08	DN16 -10	DN19 -12	DN22 -16	DN25 -16	DN31 -20	DN38 -24	DN51 -32
mm	6.4	7.9	9.5	12.7	15.9	19.0	22.4	25.4	31.8	38.1	50.8
PH255 R1AT / 1SN HIGH TEMPERATURE MSHA MARK		Crimp 19.1 19 Mark 18.7	Crimp 21.6 19 Mark 23.7
PH257 1SC MARK	Crimp 16.6 16 Mark 18.7	Crimp 18.0 16 Mark 18.7	Crimp 20.6 19 Mark 23.7	Crimp 23.8 22 Mark 23.7	Crimp 27.1 26 Mark 23.7	Crimp 30.7 30 Mark 28.7		Crimp 38.1 38 Mark 28.7
PH267 1SC HIGH TEMPERATURE MSHA MARK						Crimp 30.7 30 Mark 28.7		Crimp 38.1 38 Mark 28.7
PH269 1SC ULTRA HIGH TEMPERATURE MSHA MARK						Crimp 30.7 30 Mark 28.7		Crimp 38.1 38 Mark 28.7
PH296 1SNX - HP MARK			Crimp 20.6 19 Mark 23.7
PH258 2SC MARK	Crimp 17.4 16 Mark 18.7	Crimp 19.1 19 Mark 18.7	Crimp 21.2 19 Mark 23.7	Crimp 24.7 24 Mark 23.7	Crimp 27.7 26 Mark 23.7	Crimp 31.5 30 Mark 28.7
PH230 2SC HARD - X MSHA MARK	Crimp 17.4 16 Mark 18.7	Crimp 19.1 19 Mark 18.7	Crimp 21.2 19 Mark 23.7	Crimp 24.7 24 Mark 23.7	Crimp 27.7 26 Mark 23.7	Crimp 31.5 30 Mark 28.7
PH260 2SC ABRAZON - X MSHA MARK		Crimp 19.1 19 Mark 18.7	Crimp 21.2 19 Mark 23.7
PH293 R17 MARK	Crimp 16.6 16 Mark 18.7		Crimp 20.6 19 Mark 23.7	Crimp 24.0 22 Mark 23.7	Crimp 27.7 26 Mark 23.7	Crimp 31.5 30 Mark 28.7
PH198 R17 HARD - X MSHA MARK	Crimp 16.6 16 Mark 18.7		Crimp 20.6 19 Mark 23.7	Crimp 24.0 22 Mark 23.7	Crimp 27.7 26 Mark 23.7	Crimp 31.5 30 Mark 28.7
PH294 R17 ABRAZON - X MSHA MARK	Crimp 16.6 16 Mark 18.7		Crimp 21.1 19 Mark 23.7
PH593 R17 HIGH TEMPERATURE MSHA MARK			Crimp 20.6 19 Mark 23.7
PH295 R19 MARK	Crimp 16.6 16 Mark 18.7
PH229 R19 HARD - X MSHA MARK	Crimp 16.6 16 Mark 18.7
PH182 LIFT MASTER HARD-X MARK	Crimp 17.0 16 Mark 18.7	Crimp 18.3 16 Mark 18.7	Crimp 20.6 19 Mark 23.7
PH221 1SC HARD-X MARK	Crimp 16.6 16 Mark 18.7	Crimp 18.0 16 Mark 18.7	Crimp 20.6 19 Mark 23.7	Crimp 23.8 22 Mark 23.7	Crimp 27.1 26 Mark 23.7	Crimp 30.7 30 Mark 28.7		Crimp 38.1 38 Mark 28.7

🔗 110 FITTING SERIES · 2 PIECE · 21010400 FERRULE SERIES · NON SKIVE

3 sizes

Hose type	DN06 -04	DN08 -05	DN10 -06	DN12 -08	DN16 -10	DN19 -12	DN22 -16	DN25 -16	DN31 -20	DN38 -24	DN51 -32
mm	6.4	7.9	9.5	12.7	15.9	19.0	22.4	25.4	31.8	38.1	50.8
PH177 SAE 100 R12 MARK			Crimp 24.4 22 Mark 22.4		Crimp 32.5 30 Mark 30.2	Crimp 36.1 34 Mark 32.6		Crimp 43.7 40 Mark 39.5
PH187 SAE 100 R12 HARD - X MSHA MARK								Crimp 43.7 40 Mark 39.5
PH285 SAE 100 R12 ABRAZON - X MSHA MARK						Crimp 35.9 34 Mark 32.6

🔗 110 FITTING SERIES · 2 PIECE · 21010210 FERRULE SERIES · NON SKIVE

21 sizes

Hose type	DN06 -04	DN08 -05	DN10 -06	DN12 -08	DN16 -10	DN19 -12	DN22 -16	DN25 -16	DN31 -20	DN38 -24	DN51 -32
mm	6.4	7.9	9.5	12.7	15.9	19.0	22.4	25.4	31.8	38.1	50.8
PH253 R1AT / 1SN MARK	Crimp 17.9 16 Mark 24.6	Crimp 19.0 19 Mark 24.3	Crimp 21.2 19 Mark 26.1	Crimp 23.9 22 Mark 27.5	Crimp 27.8 26 Mark 30.2	Crimp 31.8 30 Mark 34.7		Crimp 39.8 38 Mark 42.4	Crimp 49.5 47 Mark 49.0	Crimp 57.3 57 Mark 57.0	Crimp 69.6 69 Mark 61.0
PH254 R2AT / 2SN MARK	Crimp 19.1 19 Mark 24.6	Crimp 20.2 19 Mark 24.3	Crimp 21.9 19 Mark 26.1	Crimp 24.7 24 Mark 27.5	Crimp 28.2 26 Mark 30.2	Crimp 32.3 30 Mark 34.7		Crimp 40.2 38 Mark 42.4	Crimp 52.5 50 Mark 49.0	Crimp 60.2 57 Mark 57.0	Crimp 72.6 71 Mark 61.0
PH255 R1AT / 1SN HIGH TEMPERATURE MSHA MARK	Crimp 17.9 16 Mark 24.6
PH554 R2AT / 2SN LOW TEMPERATURE MARK					Crimp 28.2 26 Mark 30.2
PH258 2SC MARK	Crimp 18.1 16 Mark 24.6	Crimp 19.5 19 Mark 24.3	Crimp 20.8 19 Mark 26.1	Crimp 24.0 22 Mark 27.5	Crimp 28.0 26 Mark 30.2	Crimp 31.4 30 Mark 34.7		Crimp 40.0 38 Mark 42.4
PH230 2SC HARD - X MSHA MARK	Crimp 18.1 16 Mark 24.6	Crimp 19.5 19 Mark 24.3	Crimp 20.8 19 Mark 26.1	Crimp 24.0 22 Mark 27.5	Crimp 28.0 26 Mark 30.2	Crimp 31.4 30 Mark 34.7		Crimp 40.0 38 Mark 42.4
PH260 2SC ABRAZON - X MSHA MARK		Crimp 19.5 19 Mark 24.3	Crimp 20.8 19 Mark 26.1	Crimp 23.2 22 Mark 27.5	Crimp 27.7 26 Mark 30.2
PH268 2SC HIGH TEMPERATURE MSHA MARK	Crimp 18.1 16 Mark 24.6	Crimp 19.5 19 Mark 24.3	Crimp 20.8 19 Mark 26.1	Crimp 23.8 22 Mark 27.5	Crimp 27.8 26 Mark 30.2	Crimp 31.4 30 Mark 34.7
PH27X POWER STEERING HOSE - MADMAX MARK						Crimp 31.4 30 Mark 34.7
PH297 2SNX - HP MARK		Crimp 19.6 19 Mark 24.3	Crimp 21.0 19 Mark 26.1	Crimp 23.4 22 Mark 27.5	Crimp 27.6 26 Mark 30.2	Crimp 31.4 30 Mark 34.7		Crimp 40.0 38 Mark 42.4
PH597 2SNX - HP HARD-X MSHA MARK	Crimp 18.1 16 Mark 24.6		Crimp 21.0 19 Mark 26.1	Crimp 23.4 22 Mark 27.5
PH207 2SNX - HP ABRAZON - X MSHA MARK			Crimp 21.2 19 Mark 26.1	Crimp 23.4 22 Mark 27.5	Crimp 27.8 26 Mark 30.2
PH238 2SNX - HP HIGH TEMPERATURE MSHA MARK						Crimp 31.4 30 Mark 34.7
PH293 R17 MARK	Crimp 16.9 16 Mark 24.6		Crimp 19.7 19 Mark 26.1	Crimp 23.6 22 Mark 27.5	Crimp 28.0 26 Mark 30.2	Crimp 31.4 30 Mark 34.7		Crimp 38.8 38 Mark 42.4
PH198 R17 HARD - X MSHA MARK	Crimp 16.9 16 Mark 24.6		Crimp 19.7 19 Mark 26.1	Crimp 23.6 22 Mark 27.5	Crimp 28.0 26 Mark 30.2	Crimp 31.4 30 Mark 34.7		Crimp 38.8 38 Mark 42.4
PH294 R17 ABRAZON - X MSHA MARK	Crimp 16.9 16 Mark 24.6				Crimp 27.7 26 Mark 30.2	Crimp 31.5 30 Mark 34.7
PH593 R17 HIGH TEMPERATURE MSHA MARK			Crimp 19.7 19 Mark 26.1	Crimp 23.0 22 Mark 27.5				Crimp 38.8 38 Mark 42.4
PH295 R19 MARK		Crimp 19.5 19 Mark 24.3	Crimp 20.8 19 Mark 26.1	Crimp 24.0 22 Mark 27.5	Crimp 27.6 26 Mark 30.2	Crimp 31.4 30 Mark 34.7		Crimp 40.0 38 Mark 42.4
PH229 R19 HARD - X MSHA MARK		Crimp 19.5 19 Mark 24.3	Crimp 20.8 19 Mark 26.1	Crimp 24.0 22 Mark 27.5	Crimp 27.6 26 Mark 30.2	Crimp 31.4 30 Mark 34.7		Crimp 40.0 38 Mark 42.4
PH434 4000 PSI HIGH TEMPERATURE MSHA MARK						Crimp 31.4 30 Mark 34.7
PH454 4000 PSI ULTRA HIGH TEMPERATURE MARK						Crimp 31.4 30 Mark 34.7

🔗 110 FITTING SERIES · 2 PIECE · 21020250 FERRULE SERIES · SKIVE

14 sizes

Hose type	DN06 -04	DN08 -05	DN10 -06	DN12 -08	DN16 -10	DN19 -12	DN22 -16	DN25 -16	DN31 -20	DN38 -24	DN51 -32
mm	6.4	7.9	9.5	12.7	15.9	19.0	22.4	25.4	31.8	38.1	50.8
PH253 R1AT / 1SN EXT \| INT	Crimp 17.5 16 Ext 19.0 Int –	Crimp 18.7 16 Ext 19.0 Int –	Crimp 21.0 19 Ext 20.0 Int –	Crimp 24.9 24 Ext 26.0 Int –	Crimp 27.5 26 Ext 28.0 Int –	Crimp 31.5 30 Ext 33.0 Int –		Crimp 39.9 38 Ext 37.0 Int –
PH254 R2AT / 2SN EXT \| INT	Crimp 18.3 16 Ext 19.0 Int –	Crimp 19.1 19 Ext 19.0 Int –	Crimp 21.9 19 Ext 20.0 Int –	Crimp 25.7 24 Ext 26.0 Int –	Crimp 28.3 26 Ext 28.0 Int –	Crimp 32.3 30 Ext 33.0 Int –		Crimp 40.7 40 Ext 37.0 Int –	Crimp 51.5 50 Ext 41.0 Int –	Crimp 60.3 57 Ext 47.0 Int –	Crimp 75.2 74 Ext 60.0 Int –
PH256 R2AT / 2SN HIGH TEMPERATURE MSHA EXT \| INT		Crimp 19.1 19 Ext 19.0 Int –
PH258 2SC EXT \| INT	Crimp 17.2 16 Ext 19.0 Int –	Crimp 18.2 16 Ext 19.0 Int –	Crimp 20.9 19 Ext 20.0 Int –	Crimp 24.7 24 Ext 26.0 Int –	Crimp 27.4 26 Ext 28.0 Int –	Crimp 31.6 30 Ext 33.0 Int –		Crimp 40.5 38 Ext 37.0 Int –
PH230 2SC HARD - X MSHA EXT \| INT	Crimp 17.2 16 Ext 19.0 Int –	Crimp 18.2 16 Ext 19.0 Int –	Crimp 20.9 19 Ext 20.0 Int –	Crimp 24.7 24 Ext 26.0 Int –	Crimp 27.4 26 Ext 28.0 Int –	Crimp 31.6 30 Ext 33.0 Int –		Crimp 40.5 38 Ext 37.0 Int –
PH260 2SC ABRAZON - X MSHA EXT \| INT				Crimp 24.7 24 Ext 26.0 Int –	Crimp 27.4 26 Ext 28.0 Int –
PH268 2SC HIGH TEMPERATURE MSHA EXT \| INT			Crimp 21.1 19 Ext 20.0 Int –
PH297 2SNX - HP EXT \| INT	Crimp 17.2 16 Ext 19.0 Int –
PH207 2SNX - HP ABRAZON - X MSHA EXT \| INT						Crimp 31.6 30 Ext 33.0 Int –
PH293 R17 EXT \| INT	Crimp 17.0 16 Ext 19.0 Int –		Crimp 20.5 19 Ext 20.0 Int –	Crimp 24.0 22 Ext 26.0 Int –	Crimp 27.4 26 Ext 28.0 Int –	Crimp 31.6 30 Ext 33.0 Int –		Crimp 40.2 38 Ext 37.0 Int –
PH198 R17 HARD - X MSHA EXT \| INT	Crimp 17.0 16 Ext 19.0 Int –		Crimp 20.5 19 Ext 20.0 Int –	Crimp 24.0 22 Ext 26.0 Int –	Crimp 27.4 26 Ext 28.0 Int –	Crimp 31.6 30 Ext 33.0 Int –		Crimp 40.2 38 Ext 37.0 Int –
PH294 R17 ABRAZON - X MSHA EXT \| INT	Crimp 17.0 16 Ext 19.0 Int –				Crimp 27.4 26 Ext 28.0 Int –
PH593 R17 HIGH TEMPERATURE MSHA EXT \| INT			Crimp 20.5 19 Ext 20.0 Int –					Crimp 40.2 38 Ext 37.0 Int –
PH177 SAE 100 R12 EXT \| INT					Crimp 29.5 28 Ext 28.0 Int –			Crimp 40.8 40 Ext 37.0 Int –

🔗 110 FITTING SERIES · 2 PIECE · 21020100 FERRULE SERIES · SKIVE

1 sizes

Hose type	DN06 -04	DN08 -05	DN10 -06	DN12 -08	DN16 -10	DN19 -12	DN22 -16	DN25 -16	DN31 -20	DN38 -24	DN51 -32
mm	6.4	7.9	9.5	12.7	15.9	19.0	22.4	25.4	31.8	38.1	50.8
PH253 R1AT / 1SN EXT \| INT									Crimp 47.4 47 Ext 32.0 Int –	Crimp 54.1 54 Ext 36.0 Int –	Crimp 68.2 67 Ext 49.0 Int –

🔗 110 FITTING SERIES · 2 PIECE · 21020400 FERRULE SERIES · SKIVE

1 sizes

Hose type	DN06 -04	DN08 -05	DN10 -06	DN12 -08	DN16 -10	DN19 -12	DN22 -16	DN25 -16	DN31 -20	DN38 -24	DN51 -32
mm	6.4	7.9	9.5	12.7	15.9	19.0	22.4	25.4	31.8	38.1	50.8
PH277 4SP EXT \| INT				Crimp 25.9 24 Ext 25.0 Int –	Crimp 28.8 28 Ext 28.0 Int –

🔗 110 FITTING SERIES · 2 PIECE · 21020405 FERRULE SERIES · SKIVE

3 sizes

Hose type	DN06 -04	DN08 -05	DN10 -06	DN12 -08	DN16 -10	DN19 -12	DN22 -16	DN25 -16	DN31 -20	DN38 -24	DN51 -32
mm	6.4	7.9	9.5	12.7	15.9	19.0	22.4	25.4	31.8	38.1	50.8
PH178 R13 EXT \| INT						Crimp 34.4 32 Ext 32.0 Int –		Crimp 41.0 40 Ext 36.0 Int –
PH279 R15 EXT \| INT						Crimp 34.4 32 Ext 32.0 Int –		Crimp 41.0 40 Ext 36.0 Int –
PH278 4SH EXT \| INT						Crimp 34.4 32 Ext 32.0 Int –		Crimp 41.0 40 Ext 36.0 Int –	Crimp 48.1 47 Ext 48.0 Int –

🔗 140 FITTING SERIES · 2 PIECE · 24030420 FERRULE SERIES · INTERLOCK

3 sizes

Hose type	DN06 -04	DN08 -05	DN10 -06	DN12 -08	DN16 -10	DN19 -12	DN22 -16	DN25 -16	DN31 -20	DN38 -24	DN51 -32
mm	6.4	7.9	9.5	12.7	15.9	19.0	22.4	25.4	31.8	38.1	50.8
PH178 R13 EXT \| INT						Crimp 35.3 34 Ext 38.0 Int 10.0		Crimp 43.2 40 Ext 50.0 Int 14.0
PH279 R15 EXT \| INT						Crimp 35.3 34 Ext 38.0 Int 10.0		Crimp 43.2 40 Ext 50.0 Int 14.0
PH278 4SH EXT \| INT						Crimp 35.3 34 Ext 38.0 Int 10.0		Crimp 43.2 40 Ext 50.0 Int 14.0

🔗 140 FITTING SERIES · 2 PIECE · 24030430 FERRULE SERIES · INTERLOCK

1 sizes

Hose type	DN06 -04	DN08 -05	DN10 -06	DN12 -08	DN16 -10	DN19 -12	DN22 -16	DN25 -16	DN31 -20	DN38 -24	DN51 -32
mm	6.4	7.9	9.5	12.7	15.9	19.0	22.4	25.4	31.8	38.1	50.8
PH278 4SH EXT \| INT									Crimp 50.2 50 Ext 68.0 Int 17.0	Crimp 55.8 54 Ext 80.0 Int 25.0	Crimp 72.8 71 Ext 87.0 Int 26.0

🔗 140 FITTING SERIES · 2 PIECE · 24030600 FERRULE SERIES · INTERLOCK

2 sizes

Hose type	DN06 -04	DN08 -05	DN10 -06	DN12 -08	DN16 -10	DN19 -12	DN22 -16	DN25 -16	DN31 -20	DN38 -24	DN51 -32
mm	6.4	7.9	9.5	12.7	15.9	19.0	22.4	25.4	31.8	38.1	50.8
PH178 R13 EXT \| INT									Crimp 54.6 54 Ext 68.0 Int 17.0	Crimp 60.9 57 Ext 80.0 Int 25.0	Crimp 76.0 74 Ext 87.0 Int 26.0
PH279 R15 EXT \| INT									Crimp 54.6 54 Ext 68.0 Int 17.0	Crimp 60.9 57 Ext 80.0 Int 25.0	Crimp 75.5 74 Ext 87.0 Int 26.0

🔗 147 FITTING SERIES · 2 PIECE · 24730660 FERRULE SERIES · INTERLOCK

1 sizes

Hose type	DN06 -04	DN08 -05	DN10 -06	DN12 -08	DN16 -10	DN19 -12	DN22 -16	DN25 -16	DN31 -20	DN38 -24	DN51 -32
mm	6.4	7.9	9.5	12.7	15.9	19.0	22.4	25.4	31.8	38.1	50.8

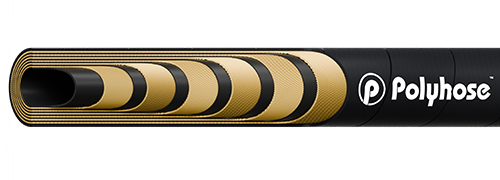

PH283 WATER BLAST 50 EXT \| INT				Crimp 34.1 32 Ext 55.0 Int 15.0

🔗 110 FITTING SERIES · 2 PIECE · 2BP20400 FERRULE SERIES · SKIVE

1 sizes

Hose type	DN06 -04	DN08 -05	DN10 -06	DN12 -08	DN16 -10	DN19 -12	DN22 -16	DN25 -16	DN31 -20	DN38 -24	DN51 -32
mm	6.4	7.9	9.5	12.7	15.9	19.0	22.4	25.4	31.8	38.1	50.8

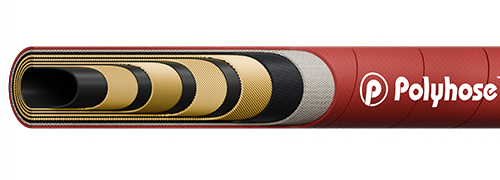

PH183 FIRE SHIELD HOSE EXT \| INT			Crimp 27.0 26 Ext 19.0 Int –	Crimp 31.2 30 Ext 25.0 Int –		Crimp 37.5 36 Ext 33.0 Int –		Crimp 45.0 44 Ext 37.0 Int –

🔗 140 FITTING SERIES · 2 PIECE · 2BP30600 FERRULE SERIES · INTERLOCK

1 sizes

Hose type	DN06 -04	DN08 -05	DN10 -06	DN12 -08	DN16 -10	DN19 -12	DN22 -16	DN25 -16	DN31 -20	DN38 -24	DN51 -32
mm	6.4	7.9	9.5	12.7	15.9	19.0	22.4	25.4	31.8	38.1	50.8
PH183 FIRE SHIELD HOSE EXT \| INT									Crimp 56.5 54 Ext 68.0 Int 17.0	Crimp 64.9 62 Ext 80.0 Int 25.0	Crimp 78.9 77 Ext 87.0 Int 26.0

🔗 130 FITTING SERIES · 2 PIECE · 23020410 FERRULE SERIES · SKIVE

1 sizes

Hose type	DN06 -04	DN08 -05	DN10 -06	DN12 -08	DN16 -10	DN19 -12	DN22 -16	DN25 -16	DN31 -20	DN38 -24	DN51 -32
mm	6.4	7.9	9.5	12.7	15.9	19.0	22.4	25.4	31.8	38.1	50.8
PH278 4SH EXT \| INT											Crimp 71.0 69 Ext 64.0 Int –

🔗 110 FITTING SERIES · 2 PIECE · 21010800 FERRULE SERIES · NON SKIVE

1 sizes

Hose type	DN06 -04	DN08 -05	DN10 -06	DN12 -08	DN16 -10	DN19 -12	DN22 -16	DN25 -16	DN31 -20	DN38 -24	DN51 -32
mm	6.4	7.9	9.5	12.7	15.9	19.0	22.4	25.4	31.8	38.1	50.8
PH492 PILOT HOSE HARD-X MARK	Crimp 15.7 14 Mark 20.7

🔗 110 FITTING SERIES · 2 PIECE · 21010300 FERRULE SERIES · NON SKIVE

5 sizes

Hose type	DN06 -04	DN08 -05	DN10 -06	DN12 -08	DN16 -10	DN19 -12	DN22 -16	DN25 -16	DN31 -20	DN38 -24	DN51 -32
mm	6.4	7.9	9.5	12.7	15.9	19.0	22.4	25.4	31.8	38.1	50.8

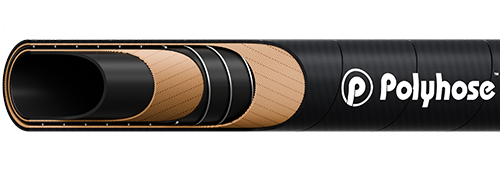

PH245 HYDRAULIC OIL S & D HOSE MARK						Crimp 33.0 32 Mark 31.7		Crimp 43.3 40 Mark 37.3			Crimp 68.4 67 Mark 61.0
PH185 HYDRAULIC OIL S & D HOSE HIGH TEMPERATURE MSHA MARK								Crimp 41.7 40 Mark 37.3

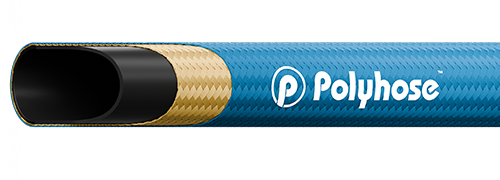

PH186 R5C XT MARK							Crimp 35.3 34 Mark 31.7

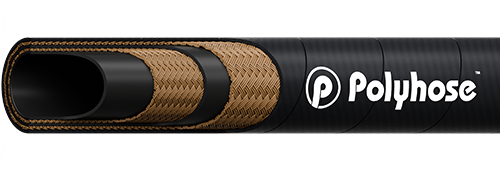

PH263 3TE MARK					Crimp 29.0 28 Mark 29.2

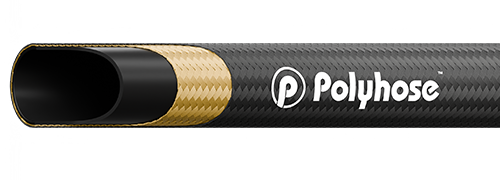

PH520 ENGINE AND AIR BRAKE HOSE MARK		Crimp 20.5 19 Mark 20.4					Crimp 35.3 34 Mark 31.7

🔗 366 FITTING SERIES · 1 PIECE · NON SKIVE

5 sizes

Hose type	DN06 -04	DN08 -05	DN10 -06	DN12 -08	DN16 -10	DN19 -12	DN22 -16	DN25 -16	DN31 -20	DN38 -24	DN51 -32
mm	6.4	7.9	9.5	12.7	15.9	19.0	22.4	25.4	31.8	38.1	50.8
PH215 5000 PSI MSHA MARK											Crimp 79.2 77 Mark 100.0
PH216 6000 PSI MSHA MARK											Crimp 79.2 77 Mark 100.0
PH178 R13 MARK											Crimp 79.2 77 Mark 100.0
PH279 R15 MARK											Crimp 79.2 77 Mark 100.0
PH278 4SH MARK											Crimp 77.0 74 Mark 100.0
